Deskripsi
Main Unit

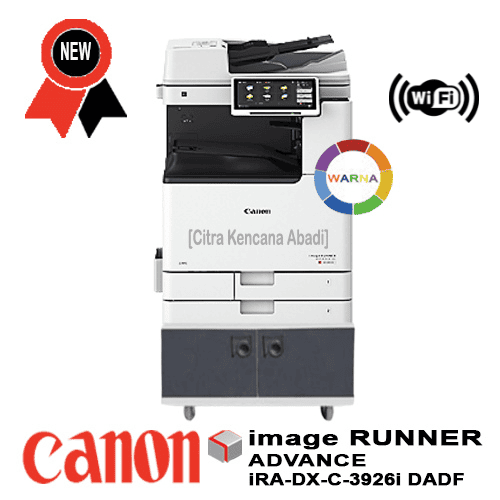

| Machine Type | A3 Colour Laser Multifunctional |
| Core Functions | Print, Copy, Scan, Send, Store and Optional Fax |
| Processor | Canon Dual Custom Processor (Shared) |
| Control Panel | 10.1 inch TFT LCD WSVGA Colour Touch panel |
| Memory |
Standard: RAM 3.5 GB
Main CPU Side: 2 GB Image Processing CPU Side: 1 GB + 0.5 GB (reserved for image processing) |
| Storage | Standard: (SSD) 256 GB Optional: (SSD) 1 TB |
| Interface Connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Optional: Wireless LAN (IEEE 802.11 b/g/n)OTHERS Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1 Optional: Serial Interface, Copy Control Interface |
| Paper Supply Capacity (A4, 80 gsm) | Standard: 1,200 sheets Multi-purpose Tray: 100 sheets 2x Standard Cassette: 550 sheetsMaximum: 2,300 sheets (with Cassette Feeding Unit-AW1) |
| Paper Output Capacity (A4, 80 gsm) | Standard: 250 sheets Maximum: 3,450 sheets (with Staple Finisher-AE1 or Booklet Finisher-AE1 and Copy Tray-T2) |
| Supported Media Types | Multi-purpose Tray: Thin, Plain, Heavy, Recycled, Coated*1, Colour, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Envelope, PostcardUpper Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*2, PostcardLower Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*3, Postcard |
| Supported Media Sizes | Multi-purpose Tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes: COM10 No.10, Monarch, ISO-C5, DL Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mmUpper Cassette: Standard size: A4, A5, A5R, A6R, B5 Custom size: 105.0 x 148.0 mm to 297.0 x 215.9 mm Envelopes: ISO-C5Lower Cassette: Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 105.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes*4: COM10 No.10, Monarch, DL |
| Supported Media Weights | Multi-purpose Tray: 52 to 300 gsm*5 Upper/Lower Cassette: 52 to 256 gsm Duplex: 52 to 220 gsm |
| Warm-up Time (Quick start mode: ON) |
Quick Startup Mode: 4 seconds or less*6 From Sleep Mode: 10 seconds or less From Power On: 10 seconds or less*7 |
| Dimensions (W x D x H) | With Platen Cover-Y3: 565 x 692 x 788 mm With Single Pass DADF-C1: 565 x 722 x 897 mm With DADF-BA1: 565 x 719 x 891 mm |
| Installation Space (W x D) | Basic: 978 x 1,119 mm (with Single Pass DADF-C1 + right door & multi-purpose tray opened + paper cassette opened) 978 x 1,116 mm (with DADF-BA1 + right door & multi-purpose tray opened + paper cassette opened)Fully Configured: 1,651 x 1,119 mm (with Single Pass DADF-C1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette opened) 1,651 x 1,116 mm (with DADF-BA1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette opened) |
| Weight Including Toner |
With Platen Cover-Y3: Approx. 73 kg With DADF-BA1: Approx. 79 kg With Single Pass DADF-C1: Approx. 86 kg |
Print Specifications
| Print Speed (BW) | iR-ADV DX C3935i: 1-sided: Up to 35 ppm (A4), Up to 17 ppm (A3), Up to 23 ppm (A4R)iR-ADV DX C3930i: 1-sided: Up to 30 ppm (A4), Up to 15 ppm (A3), Up to 20 ppm (A4R)iR-ADV DX C3926i: 1-sided: Up to 26 ppm (A4), Up to 15 ppm (A3), Up to 20 ppm (A4R) iR-ADV DX C3922i: |
| Print Resolution (dpi) | 1,200 x 600 1,200 x 1,200 (half-speed) |
| Page Description Languages | Standard: UFR II, PCL6 Option: Adobe® PostScript®3™ |
| Direct Print (RUI) | PDF, EPS, TIFF/JPEG, XPS |
| Printing from Mobile and Cloud Applications | AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print |
| OS Standard Printing | Android, Windows® 10/11, Chrome OS, macOS (11.2.2 or later), iOS (15.2 or later), iPadOS |
| Fonts | PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*9 |
| Operating System | UFR II: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, macOS (10.13 or later)
PCL: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022 PS: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, macOS (10.13 or later) PPD: Windows® 10/11, macOS (10.13 or later) |
Copy Specifications
| Copy Speed | iR-ADV DX C3935i: 1-sided: Up to 35 ppm (A4), Up to 17 ppm (A3), Up to 23 ppm (A4R)iR-ADV DX C3930i: 1-sided: Up to 30 ppm (A4), Up to 15 ppm (A3), Up to 20 ppm (A4R)iR-ADV DX C3926i: 1-sided: Up to 26 ppm (A4), Up to 15 ppm (A3), Up to 20 ppm (A4R) iR-ADV DX C3922i: |
| First-Copy-Out Time (A4) | iR-ADV DX C3935i: Approx. 5.5/7.4 seconds or lessiR-ADV DX C3930i/C3926i/C3922i: Approx. 6.1/8.4 seconds or less |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | Variable zoom: 25% to 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400% |
Scan Specifications
| Type | Standard: Colour Platen Optional: Platen Cover-Y3, Single Pass DADF-C1*10 or DADF-BA1 [2-sided to 2-sided (Automatic with DADF)] DADF: Duplexing Automatic Document Feeder |
| Document Feeder Paper Capacity (80 gsm) | Single Pass DADF-C1: Up to 200 Sheets DADF-BA1: Up to 100 Sheets |
| Acceptable Originals and Weights | Platen: Sheet, Book, and 3-Dimensional Objects
Document Feeder media weight: DADF-BA1: |
| Supported Media Sizes | Platen: Max. scanning size: 297.0 x 431.8 mm
Single Pass DADF-C1: DADF-BA1: |
| Scan Speed (ipm: BW/CL, A4) | Single Pass DADF-C1: 1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy) 2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)DADF-BA1: 1-sided Scanning: 70/70 (300 x 300 dpi, send), 51/51 (600 x 600 dpi, copy) 2-sided Scanning: 35/35 (300 x 300 dpi, send), 25.5/25.5 (600 x 600 dpi, copy) |
| Scan Resolution (dpi) | Scan for Copy: 600 x 600
Scan for Send: Scan for Fax: 600 x 600 |
| Pull Scan Specifications | Colour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows® 10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022 |
Send Specifications
| Destination | Standard: E-mail/Internet FAX (SMTP), SMB, FTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax |
| Address Book | LDAP (2,000)/Local (1,600)/One-touch (200) |
| Send Resolution (dpi) | Push: Up to 600 x 600 Pull: Up to 600 x 600 |
| Communication Protocol | FTP: (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV Email/iFax: SMTP (send), POP3 (receive) |
| File Format | Standard: TIFF (MMR), JPEG*12, PDF (Compact, OCR (Text Searchable), Optimize PDF for Web, Format to PDF/A-1b, Trace & Smooth, Encrypt), XPS (Compact, OCR (Text Searchable)), PDF/XPS (Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
Fax Specifications
| Maximum Number of Connection Lines | 2 |
| Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression Method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal) |
| Sending/Recording Size | Sending: A3, A4, A4R, A5*13, A5R*13, B4, B5*14, B5R*13 Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R |
| Fax Memory | Up to 30,000 pages (2,000 jobs) |
| Speed Dials | Max. 200 |
| Group Dials/Destinations | Max. 199 dials |
| Sequential Broadcast | Max. 256 addresses |
| Memory Backup | Yes |
Store Specifications
| Box (Number supported) | 100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 10,000 Pages (2,000 jobs) Stored |
| Advanced Box | Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 10/11 Concurrent Connections (Max.): SMB: 64, WebDAV: 3 |
| Advanced Box Available Disc Space | Standard: 16 GB (With option: Max. 480 GB) |
| Advanced Box Features | Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore |
Security Specifications
| Authentication and Access Control | User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW*15 (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control) |
| Document Security | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*16), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark) |
| Network Security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), Communication Line Separation (G3 FAX, USB Port, Advanced Box, Scan and Send -Virus Concerns for E-mail Reception) |
| Device Security | Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Checking MFD Software Integrity (Verify System at Startup, Automatic Recovery, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP) |
| Device Management and Auditing | Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting |
Environmental Specifications
| Operating Environment | Temperature: 10 to 30ºC Humidity: 20 to 80% RH (Relative Humidity) |
| Power Source | 220-240V 50/60Hz 5A |
| Power Consumption | Maximum: Approx. 1,500 W Sleep Mode: Approx. 0.8 W*17 |
Consumables
| Toner (Estimated Yield @ 5% Coverage) | NPG-88 Toner BK: 38,000 pages NPG-88 Toner C/M/Y: 25,500 pages NPG-88L Toner C/M/Y: 4,000 pages |
Software and Printer Management
| Tracking and Reporting | uniFLOW Online Express / uniFLOW Online |
| Remote Management Tools | iW Management Console eMaintenance Content Delivery System |
| Scanning Software | Colour Network ScanGear 2 |
| Optimisation Tools | Canon Driver Configuration Tool |
| Platform | MEAP (Multifunctional Embedded Application Platform) |
| Document Publishing | iW DESKTOP |
Paper Supply Options
| Cassette Feeding Unit-AW1 | Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Postcard Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm Paper Weight: 52 to 256 gsm Power Source: From the Main Unit Dimensions (W x D x H): 565 x 635 x 248 mm Weight: Approx. 16.0 kg |
Output Options*18
| Inner 2way Tray-M1 | Tray Capacity (with 80 gsm paper) Upper tray: A4, A5, A5R, A6R, B5, B5R: 100 sheets SRA3, A3, A4R, B4: 50 sheets Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: Up to 250 sheets SRA3, A3, A4R, B4: Up to 100 sheetsPaper Weight: 52 to 300 gsm Dimensions (W x D x H): 428 x 405 x 88 mm Weight: 0.7 kg |
| Copy Tray-T2 | Capacity (with 80 gsm paper): A4, A5R, B5, B5R: 100 sheets A3, A4R, B4: 75 sheets Dimensions (W x D x H): 444 x 373 x 176 mm (attached to the main unit, when the extension tray is extended) Weight: 0.5 kg |
| Inner Finisher-L1 | Tray Capacity (with 80 gsm paper): Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: Approx. 45 sheets Lower Tray: A4, A5, A5R, B5: Approx. 500 sheets SRA3, A3, A4R, B4, B5R: 250 sheets A6R: 30 sheets Envelope: 10 sheetsPaper Weight: 52 to 300 gsmStaple Position: Corner, Double Staple Capacity: A4, B5: 50 sheets (52 to 90 gsm) A4R: 40 sheets (52 to 90 gsm) A3, B4: 30 sheets (52 to 90 gsm) Eco Staple: A3, A4, B4, B5: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (82 to 105 gsm) Staple On Demand: Approx. 40 sheets (80 gsm) Dimensions (W x D x H): 587 x 525 x 225 mm (attached to the main unit, when the extension tray is extended) |
| Inner 2/3 Hole Puncher-D1 | (Requires Inner Finisher-L1) Two or Three Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes A3, A4, A4R, A5, B4, B5, B5R Three holes A3, A4, B4, B5 |
| Inner 2/4 Hole Puncher-D1 | (Requires Inner Finisher-L1) Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes A3, A4, A4R, A5, B4, B5, B5R Four holes A3, A4 |
| Staple Finisher-AE1 | Tray Capacity (with 80 gsm paper): Upper Tray: A4, A5, A5R, A6R, B5: Approx. 250 sheets SRA3, A3, A4R, B4, B5R: Approx. 125 sheets Lower Tray: A4, A5, A5R, B5: 3,000 sheets SRA3, A3, A4R, B4, B5R: 1,500 sheets A6R: 250 sheets Envelope: Monarch 30 sheets, COM10 No.10, DL, ISO-C5: 100 sheetsPaper Weight: Upper Tray: 52 to 256 gsm Lower Tray: 52 to 300 gsmStaple Position: Corner, Double Staple Capacity: A4, B5: 50 sheets (52 to 90 gsm) A4R: 40 sheets (52 to 90 gsm) A3, B4: 30 sheets (52 to 90 gsm) Eco Staple: A3, A4: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (82 to 105 gsm) Staple On Demand: 50 sheets (52 to 90 gsm) Dimensions (W x D x H): 637 x 623 x 1,021 mm (when the extension tray is extended) |
| Booklet Finisher-AE1 | (Includes the above Staple Finisher-AE1 basic staple specifications.) Saddle Stitch paper size: A3, A4R, B4 Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet up to 256 gsm) Non Staple Folded Bunch Capacity: up to 3 sheets (52 to 105 gsm) Dimensions (W x D x H): 637 x 623 x 1,021 mm (when the extension tray is extended) Weight: Approx. 53.0 kg |
| 2/3 Hole Puncher Unit-A1 | (Requires either the Staple Finisher-AE1 or Booklet Finisher-AE1) Two or Three Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes A3, A4, A4R, A5, B4, B5, B5R Three holes A3, A4, B4, B5 |
| 2/4 Hole Puncher Unit-A1 | (Requires either the Staple Finisher-AE1 or Booklet Finisher-AE1) Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes A3, A4, A4R, A5, B4, B5, B5R Four holes A3, A4 |
Hardware Accessories
| Card Readers | IC Card Reader Box for Numeric Keypad-A1 |
| Others | Single Pass DADF-C1 DADF-BA1 Platen Cover-Y3 Utility Tray-B1 Numeric Keypad-A2 Media Adjustment Kit-A1 |
System and Controller Options
| Print Accessories | PS Printer Kit-BG1 PCL Printer Kit-CC1 PCL International Font Set-A1 Barcode Printing Kit-D1 |
| Fax Accessories | Super G3 FAX Board-BH1 Super G3 2nd Line Fax Board-BH1 Remote Fax Kit-A1 IP FAX Expansion Kit-B1 |
| Storage Accessories | 1 TB SSD-A1 Memory Mirroring Kit-A1 250 GB SSD-A1 |
| Interface Accessories | Wireless LAN Board-F1 Copy Control Interface Kit-A1 Serial Interface Kit-K3 |
Other Options
| Accessibility Accessories | ADF Access Handle-A1 Voice Guidance Kit-G1 Voice Operation Kit-D1 |
| Staple Cartridges | Staple Cartridge-Y1 Staple-P1 |
